Copper Tubing Types

Six grades of plain copper tubes are produced. It is coated or may by suited with a polyethylene coating.

Water Flow In Copper Tubes Pressure Loss Due To Fricton

Type K L and M are the three most common copper pipe forms used in both residential and industrial buildings.

Copper tubing types. Soft copper pipe bends easily without tools and is more properly called tubing. Learn from industry leader Metal Forming Solutions. In addition some of the rigid wall straight lengths of copper tube are sometimes referred to as copper pipe.

0035 0269 0049 0049 0049 0065 0050 0065 104 0065 136 0072 175 0083 203 0095 268 0109 358 0120 651 0134 967 0160 0192 0200 0271 0145 0344 0418 0641 0839 206 293 400 512 1390 2590 0030 0035 0040 0042 0045 0055 0060 0070 0080 0090 0100 0110 0125 0140 0126. Copper tube has inherent strength providing good resistance to external damage puncture abrasion vibration bumps and has a wide operating range for pressure and vacuum. The key difference between types L and M is their pressure rating and wall thickness.

Learn about the different types of copper tubing. In addition to incised markings hard tube will have this information printed on it in a color which distinguishes its tube type See Table 141. Copper tube Types K L M DWV and Medical Gas must be permanently marked incised in accordance with its governing specifications to show tube type the name or trademark of the manufacturer and the country of origin.

As in many circumstances your application for the copper may differ from the manufacturers suggested uses. Introduction To Copper Tube Piping and Fitting Home. It is usually available as hard drawn straight sections and in rolls that have been annealed.

Copper Tubing and Pipe This guide shows the difference in the types of copper tubing and pie available and suggestions for what they are most commonly used. Copper tube for air-conditioning and refrigeration field service ACR is designated by actual outside diameter. Copper tubing is impervious to oxygen insecticide solvents and toxins.

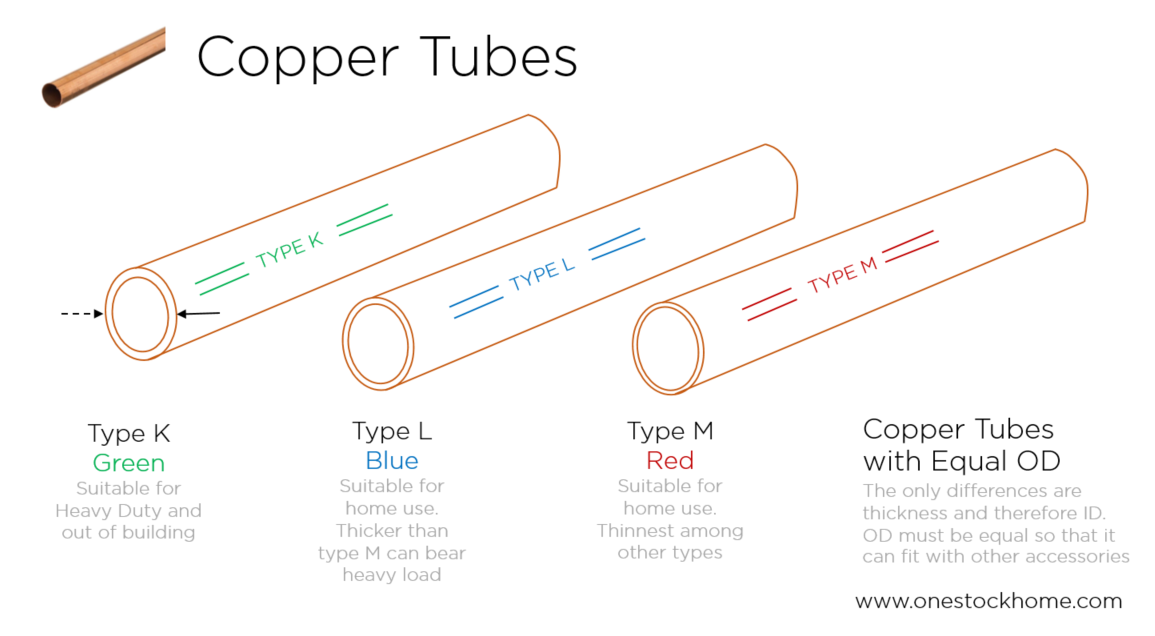

Sizing of Copper Pipe. Copper tubing may be rendered as soft or strong copper which has outstanding corrosion resistance which stable connections. Type K tube has thicker walls than Type L tube and Type L walls are thicker than Type M for any given diameter.

Green Type B. The difference is the wall thickness of the copper pipe sizes and therefore the pressure it can handle. Blue Type C.

Types of Copper Tube. You may be surprised to find two types of copper pipe on the home center shelf Type L and Type M. The use of these terms may vary from supplier to supplier.

Type K Type L Type M and Refrigeration pipe. Inflexible hard copper pipe requires pipe bending equipment in order to bend it and is usually cut and fit rather than bent. Type M ½ inch measures 0028 in wall thickness whereas type L ½ inch measures 004 in wall thickness.

Type L Type K Type M DMV pipes and more. For additional information about pipe and piping consult our related guide to pipes and piping. Few older homes may use a fourth plumbing type used for drain-waste-venting or DWV.

Type M Copper Tubing Type M copper is a thin walled copper pipe commonly used in domestic water applications. Copper pipes can be manufactured as soft or rigid copper and offer excellent corrosion-resistance and reliable connections. Copper tubing is usually available in either soft or hard presentations.

Most residential water supply plumbing uses two types of hard copper pipe. Click to see full answer Also to know is is copper tubing OK for propane. Type K is the thickest of the types and is often used underground.

This type is also. Types K and L copper tube ASTM B 88 and ACR tube ASTM B 280 up to and including 1-inch outside diameter have been used in fuel gas systems for many years. All inside diameters depend on tube size and wall thickness.

The exterior dimensions are identical meaning you use the same copper fittings. Copper pipe is available in several basic types including. Usually Type L is used for interior distribution systems and Type K for any underground lines.

A fourth type used for drain-waste-vent or DWV piping can be found in some older homes. Type L is thinner than type K and is used for water supply and pressure applications. Copper tube standard lengths type k type l acr type m dwv od.

Red Type D. The three most common types of copper pipe used in residential and commercial construction are Type K Type L and Type M. The most common copper pipe sizes are ½ and ¾ inches.
